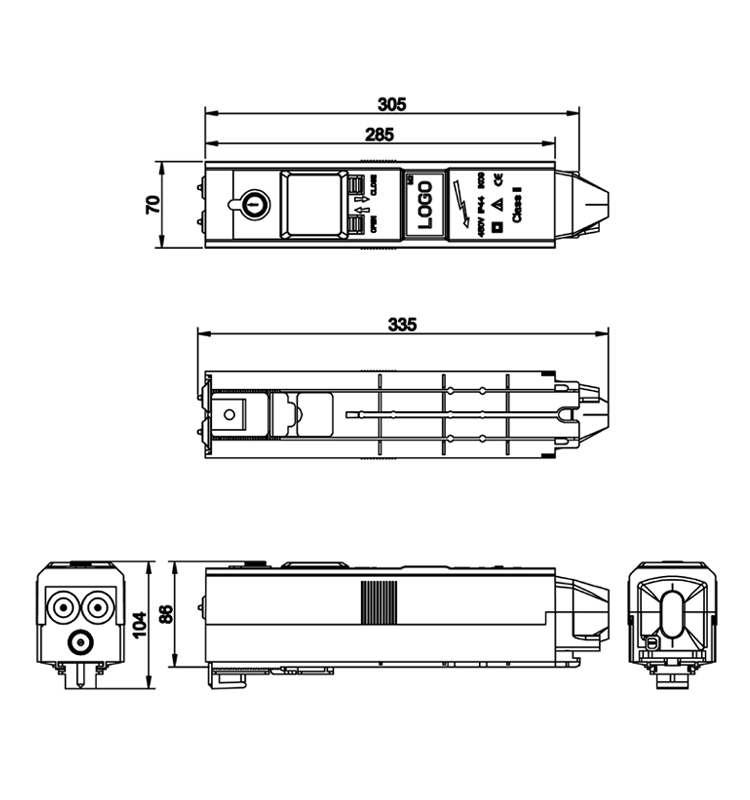

IP44 street lighting pole fuse connection box,plastic junction box

1、 Product introduction of the fuse box

1-Body made of polyamide resin 6 self-extinguishing and infrangible.
 2-Moulded connector made of polyamide resin 6 self-extinguishing.

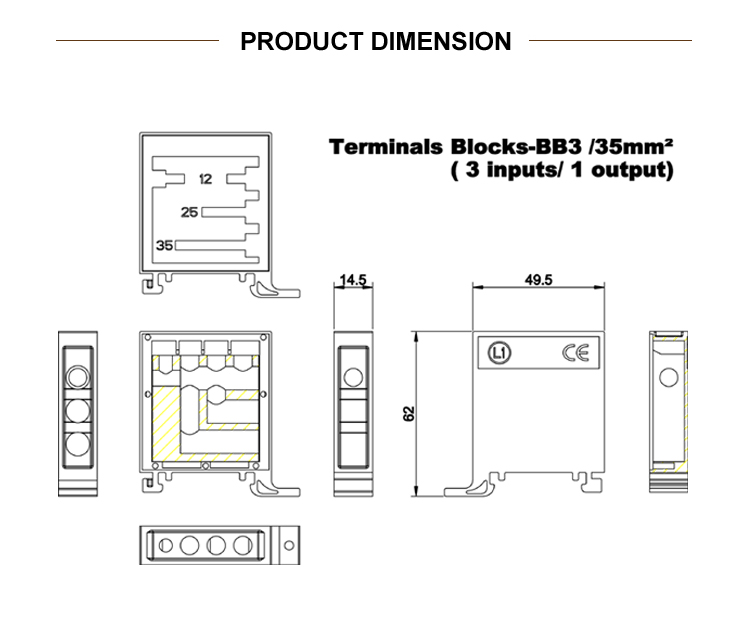

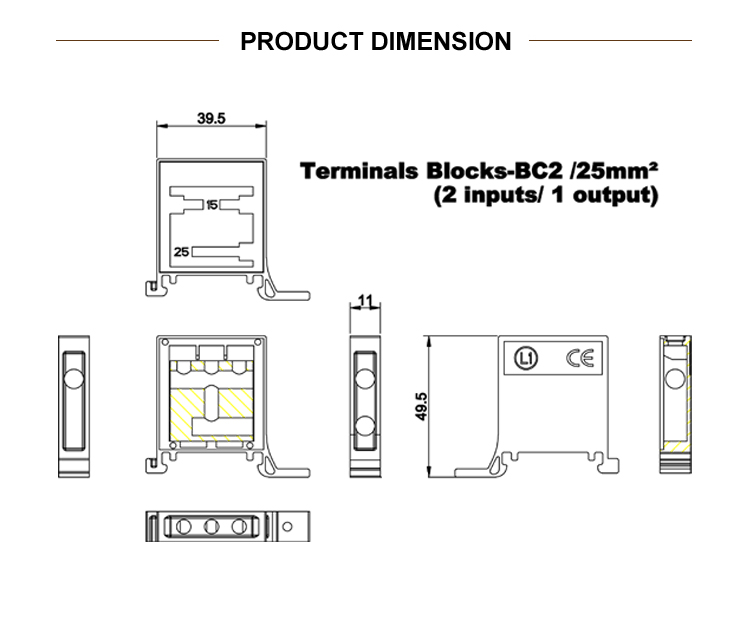

 3-Pressed terminals made of 3 ways zinc electro-alloy. Fast assembling on DIN rail.
 Single connection of the wires by stainess steel screws.
 4-Double DIN rail to allow the 4 cables 3 ways terminal strip 4*25sqmm/ 5*25sqmm/4*35sqmm plus one or two fuse carriers (or MCB)
 5-Voltage 450V max. current 63A.
 6-Pole recessed mounting diameter min. 140mm.
 7-The min. dimensions of the door openingof the pole should be 100*400mm.
 8-Body and terminals class 2 according to CEI64-8/4 standards.
 9-Protection rate IP44 along the frame;
 IK 08 according to CEI EN 50102 standards.
 10-Any RAL colour on request.

2、Product Feature And Application of Fuse Box Model M2

This Fuse Box Model M2 was made up with polyamide resin 6 self-extinguishing and infrangible. It was applicated into urban roads and street lighting poles. We devoted ourselves to lighting many years, covering most of Europe and Asia, middle east market. We are expecting become your long-term partner in China.
